在网上看到很多的朋友要OPC客户端的原码,我在网上找了一个C++类,包含了CHotOpcServer,CHotOpcGroup,CHotOpcItem三个主要类,对于实现OPC客户端起了很大的作用,简单不少.我最近做了一个,不过还不完善,仍有BUG,希望共同爱好的朋友共同完善了!
下面给出这三各类的部分原码!
//CHotOpcServer
// CHotOpcServer 命令目标
/*---------------------------------------------
CHotOpcServer类
desc:...
----------------------------------------------*/
class CHotOpcServer : public CObject
{
public:
CHotOpcServer();
CHotOpcServer(CString &strSerName,CString strRemote);
virtual ~CHotOpcServer();
protected:
//声明OPC相应接口
IOPCServer *m_pIServer;
IOPCCommon *m_pICommon;
IConnectionPointContainer *m_pIConnPtContainer;
IOPCItemProperties *m_pIItemProps;
IOPCBrowseServerAddressSpace *m_pIBrowse;
IOPCServerPublicGroups *m_pIPublicGroups;
IPersistFile *m_pIPersistFile;
IHotShutdown *m_pIShutdownSink;
DWORD m_dwCookieShutdown;
MULTI_QI m_arrMultiQI[7]; //接口数组,用于查询服务
typedef struct S_Flags
{
DWORD bIsKepServerEx : 1;
DWORD Reserved : 31;
} FLAGS;
FLAGS m_bfFlags;
CStringList *m_pServerList; //服务器名列表
CString m_strServerName; //服务器名称
CString m_strRemoteMachine;//机器地址或名
bool m_bConnected;
// 列表管理
CHotOpcServer *m_pPrev;
CHotOpcServer *m_pNext;
// 组管理
CHotOpcGroup *m_pGroupHead;
DWORD m_cdwGroups;
void InitInterface(void);
HRESULT GetCLSID (CLSID &clsid);
public:
INT DisplayComponent(BOOL bOpc2 = TRUE);
INT GetServerCount(void);
CString GetServerNameByIndex(int nIndex);
void SetServerName (CString &strSerName);
LPCTSTR GetServerName()
{return (m_strServerName);}
void SetRemoteMachine (CString &strRemoteMachine);
LPCTSTR GetRemoteMachine ()
{
if (m_strRemoteMachine.IsEmpty ())
return (NULL);
return (m_strRemoteMachine);
}
void ShutdownRequest (LPCTSTR lpszReason);
bool Connect (CString &strSerName, CString &strRemoteMachine);
bool Connect(void);
void Disconnect(void);
bool IsConnected () {return (m_bConnected);}
bool IsKepServerEx () {return (m_bfFlags.bIsKepServerEx);}
bool IsAlive ();
void Start ();
void Stop ();
// cut/copy/paste
void Copy (CFixedSharedFile &sf);
void Paste (CFixedSharedFile &sf);
// list management
void SetPrev (CHotOpcServer *pPrev) {m_pPrev = pPrev;}
CHotOpcServer* GetPrev () {return (m_pPrev);}
void SetNext (CHotOpcServer *pNext) {m_pNext = pNext;}
CHotOpcServer* GetNext () {return (m_pNext);}
// group management
void AddGroup (CHotOpcGroup *pGroup, bool bLoadingProject = false);
void AddClonedGroup (CHotOpcGroup *pClone);
void RemoveGroup (CHotOpcGroup *pGroup, bool bDelete = true);
void RemoveAllGroups (bool bDelete = true);
CHotOpcGroup* GetGroupHead () {return (m_pGroupHead);}
bool GenerateGroupName (CString &strName);
bool FindGroup (LPCTSTR lpszName);
CHotOpcGroup *GetGroup (LPCTSTR lpszName);
// 所支持的接口
bool IsIServerSupported () {return (m_pIServer != NULL);}
bool IsICommonSupported () {return (m_pICommon != NULL);}
bool IsIConnectionPointContainerSupported () {return (m_pIConnPtContainer != NULL);}
bool IsIItemPropertiesSupported () {return (m_pIItemProps != NULL);}
bool IsIBrowsingSupported () {return (m_pIBrowse != NULL);}
bool IsIServerPublicGroupsSupported () {return (m_pIPublicGroups != NULL);}
bool IsIPersistFileSupported () {return (m_pIPersistFile != NULL);}
IOPCServer* GetIServer () {return (m_pIServer);}
IOPCBrowseServerAddressSpace* GetIBrowse () {return (IsAlive () ? m_pIBrowse : NULL);}
IOPCItemProperties* GetIItemProps () {return (m_pIItemProps);}
virtual void Serialize(CArchive& ar);
};
// **************************************************************************
//------------------------------------------------------
//继续IOPCShutdown接口
/*---------------------------------------------
CHotOpcServer类
desc:...
----------------------------------------------*/
class IHotShutdown : public IOPCShutdown
{
public:
IHotShutdown (CHotOpcServer *pServer);
~IHotShutdown ();
// 实现IUnknow接口方法
STDMETHODIMP QueryInterface (REFIID iid, LPVOID *ppInterface);
STDMETHODIMP_(ULONG) AddRef ();
STDMETHODIMP_(ULONG) Release ();
// IOPCShutdown 接口方法
STDMETHODIMP ShutdownRequest (LPCWSTR lpwszReason);
private:
DWORD m_cnRef;
CHotOpcServer *m_pServer;
};
class IKDataSink20 : public IOPCDataCallback
{
public:
IKDataSink20 ();
~IKDataSink20 ();
// IUnknown Methods
STDMETHODIMP QueryInterface (REFIID iid, LPVOID *ppInterface);
STDMETHODIMP_(ULONG) AddRef ();
STDMETHODIMP_(ULONG) Release ();
// IOPCDataCallback Methods
STDMETHODIMP OnDataChange ( // OnDataChange notifications
DWORD dwTransID, // 0 for normal OnDataChange events, non-zero for Refreshes
OPCHANDLE hGroup, // client group handle
HRESULT hrMasterQuality, // S_OK if all qualities are GOOD, otherwise S_FALSE
HRESULT hrMasterError, // S_OK if all errors are S_OK, otherwise S_FALSE
DWORD dwCount, // number of items in the lists that follow
OPCHANDLE *phClientItems, // item client handles
VARIANT *pvvalues, // item data
WORD *pwQualities, // item qualities
FILETIME *pftTimeStamps, // item timestamps
HRESULT *pErrors); // item errors
STDMETHODIMP OnReadComplete ( // OnReadComplete notifications
DWORD dwTransID, // Transaction ID returned by the server when the read was initiated
OPCHANDLE hGroup, // client group handle
HRESULT hrMasterQuality, // S_OK if all qualities are GOOD, otherwise S_FALSE
HRESULT hrMasterError, // S_OK if all errors are S_OK, otherwise S_FALSE
DWORD dwCount, // number of items in the lists that follow
OPCHANDLE *phClientItems, // item client handles
VARIANT *pvvalues, // item data
WORD *pwQualities, // item qualities
FILETIME *pftTimeStamps, // item timestamps
HRESULT *pErrors); // item errors
STDMETHODIMP OnWriteComplete ( // OnWriteComplete notifications
DWORD dwTransID, // Transaction ID returned by the server when the write was initiated
OPCHANDLE hGroup, // client group handle
HRESULT hrMasterError, // S_OK if all errors are S_OK, otherwise S_FALSE
DWORD dwCount, // number of items in the lists that follow
OPCHANDLE *phClientItems, // item client handles
HRESULT *pErrors); // item errors
STDMETHODIMP OnCancelComplete ( // OnCancelComplete notifications
DWORD dwTransID, // Transaction ID provided by the client when the read/write/refresh was initiated
OPCHANDLE hGroup);
private:
DWORD m_cnRef;
};
// **************************************************************************
class CKAdviseSink : public IAdviseSink
{
public:
CKAdviseSink ();
// IUnknown Methods
STDMETHODIMP QueryInterface (REFIID riid, LPVOID *ppInterface);
STDMETHODIMP_(ULONG) AddRef ();
STDMETHODIMP_(ULONG) Release ();
// IAdviseSink Methods
STDMETHODIMP_(void) OnDataChange (FORMATETC *pFormatEtc, STGMEDIUM *pMedium);
STDMETHODIMP_(void) OnViewChange (unsigned long dwAspect, long lindex) {/*Not implemented*/};
STDMETHODIMP_(void) OnRename (LPMONIKER pmk) {/*Not implemented*/};
STDMETHODIMP_(void) OnSave () {/*Not implemented*/};
STDMETHODIMP_(void) OnClose () {/*Not implemented*/};
private:
protected:
ULONG m_cRef;
};
// **************************************************************************
// CHotOpcGroup 命令目标
/*---------------------------------------------
CHotOpcGroup类
desc:...
----------------------------------------------*/
class CHotOpcGroup : public CObject
{
public:
// construction/destruction
CHotOpcGroup (CHotOpcServer *pParent);
~CHotOpcGroup ();
public:
// property accessor/manipulators
void SetName (CString &strName) {m_strName = strName;}
void SetName (LPCTSTR lpszName) {m_strName = lpszName;}
LPCTSTR GetName () {return (m_strName);}
void SetUpdateRate (DWORD dwRate) {m_dwUpdateRate = dwRate;}
DWORD GetUpdateRate () {return (m_dwUpdateRate);}
void SetLanguageID (LCID lcid) {m_dwLanguageID = lcid;}
LCID GetLanguageID () {return (m_dwLanguageID);}
void SetActive (BOOL bActive, BOOL bApply = FALSE)
{
/*m_bActive = bActive;
// apply change to server now
if (bApply && m_pIGroupState)
{
DWORD dwRevRate; // for [out] parm
m_pIGroupState->SetState (NULL, &dwRevRate, &m_bActive, NULL, NULL, NULL, NULL);
// select the activated group
CKMainWnd *pWnd = (CKMainWnd *) AfxGetMainWnd ();
if (pWnd)
pWnd->PostMessage (UM_SELECT_GROUP, 0, (LPARAM) this);
// log status
LogMsg (IDS_SET_GROUP_ACTIVE_STATE, bActive, GetName ());
}*/
}
BOOL IsActive () {return (m_bActive);}
void SetBias (long lBias) {m_lBias = lBias;}
long GetBias () {return (m_lBias);}
void SetDeadband (float fDeadband) {m_fDeadband = fDeadband;}
float GetDeadband () {return (m_fDeadband);}
void SetServerHandle (OPCHANDLE hServer) {m_hServer = hServer;}
OPCHANDLE GetServerHandle () {return (m_hServer);}
void SetValid (BOOL bValid) {m_bValid = bValid;}
BOOL IsValid () {return (m_bValid);}
void SetUpdateMethod (DWORD dwMethod) {m_dwUpdateMethod = dwMethod;}
DWORD GetUpdateMethod () {return (m_dwUpdateMethod);}
// flag accessor/manipulators
void ForceDeletion (BOOL bSet) {m_bfFlags.bOnDeleteForceDeletion = bSet;}
BOOL IsForceDeletion () {return (m_bfFlags.bOnDeleteForceDeletion);}
// OPC Specifics
void Initialize (LPUNKNOWN pUnk);
void Uninitialize (bool bDelete = true);
bool SetItemActiveState (CObArray &cItemList, DWORD cdwItems, bool bActive);
void ReadSync (CObArray &cItemList, DWORD cdwItems, bool bDeviceRead, bool bPostMsg = true);
void WriteSync (CObArray &cItemList, CStringArray &cvalues, DWORD cdwItems);
void ReadAsync10 (CObArray &cItemList, DWORD cdwItems, bool bDeviceRead);
void RefreshAsync10 (bool bDeviceRead);
void WriteAsync10 (CObArray &cItemList, CStringArray &cvalues, DWORD cdwItems);
void ReadAsync20 (CObArray &cItemList, DWORD cdwItems);
void RefreshAsync20 (bool bDeviceRead);
void WriteAsync20 (CObArray &cItemList, CStringArray &cvalues, DWORD cdwItems);
CHotOpcGroup* Clone ();
void Start ();
void ExportCsv (CStdioFile &csv);
void ImportCsv (CStdioFile &csv, CObArray &cItemList, DWORD &cdwItems);
// cut/copy/paste
void Copy (CFixedSharedFile &sf);
void Paste (CFixedSharedFile &sf);
// parent server access
CHotOpcServer* GetParentServer () {return (m_pServer);}
// list management
void SetPrev (CHotOpcGroup *pPrev) {m_pPrev = pPrev;}
CHotOpcGroup* GetPrev () {return (m_pPrev);}
void SetNext (CHotOpcGroup *pNext) {m_pNext = pNext;}
CHotOpcGroup* GetNext () {return (m_pNext);}
// item management
void AddItems (CObArray &cItemList, DWORD dwCount, bool bLoadingProject = false);
void RemoveItems (CObArray &cItemList, DWORD dwCount, bool bDelete = true);
void RemoveAllItems (bool bDelete = true);
CHotOpcItem* GetItemHead () {return (m_pItemHead);}
DWORD GetItemCount () {return (m_cdwItems);}
bool IsIGroupStateMgtSupported () {return (m_pIGroupState != NULL);}
bool IsIPublicGroupStateMgtSupported () {return (m_pIPublicGroupState != NULL);}
bool IsIItemMgtSupported () {return (m_pIItemMgt != NULL);}
bool IsISyncIOSupported () {return (m_pISync != NULL);}
bool IsIAsyncIOSupported () {return (m_pIAsync != NULL);}
bool IsIDataObjectSupported () {return (m_pIDataObject != NULL);}
bool IsIAsyncIO2Supported () {return (m_pIAsync2 != NULL);}
bool IsIConnectionPointContainerSupported () {return (m_pIConnPtContainer != NULL);}
IOPCItemMgt* GetIItemMgt () {return (m_pIItemMgt);}
IOPCGroupStateMgt* GetIGroupStateMgt () {return (m_pIGroupState);}
IOPCSyncIO* GetISyncIO () {return (m_pISync);}
private:
bool MapStringValToVariant (CString &strvalue, VARIANT &vtVal, VARTYPE vtType);
typedef enum _tagGETARRELEMRET
{
tElement = 0,
tEndRow,
tInvalid,
tOverflow,
tDone
} GETARRELEMRET;
GETARRELEMRET GetArrayElement (LPCTSTR szInBuff, int *pnStart, LPTSTR szOutBuff, int nBuffSize);
bool MapStringValToArrayVariant (CString &strvalue, VARIANT *pvtSrc, VARIANT *pvtDst);
void AddItemToList (CHotOpcItem *pItem);
void RemoveItemFromList (CHotOpcItem *pItem);
private:
// properties
CString m_strName; // group name
DWORD m_dwUpdateRate; // update rate in milliseconds
LCID m_dwLanguageID; // language ID
BOOL m_bActive; // active state
long m_lBias; // time bias in minutes
float m_fDeadband; // percent deadband
OPCHANDLE m_hServer; // server handle for this group
BOOL m_bValid; // TRUE if successfully added to the OPC server
DWORD m_dwUpdateMethod; // update method used by this group (see globals.h)
typedef struct _flags
{
DWORD bOnDeleteForceDeletion : 1; // TRUE if the server should force deletion of group even if references exists
// DWORD bOnDeleteRemoveItems : 1; // TRUE if the client should remove items before remove group
DWORD Reserved : 31;
} FLAGS;
FLAGS m_bfFlags;
// OPC specifics
IOPCGroupStateMgt *m_pIGroupState;
IOPCPublicGroupStateMgt *m_pIPublicGroupState;
IOPCItemMgt *m_pIItemMgt;
IOPCSyncIO *m_pISync;
IOPCAsyncIO *m_pIAsync;
IDataObject *m_pIDataObject;
IOPCAsyncIO2 *m_pIAsync2;
IConnectionPointContainer *m_pIConnPtContainer;
IKDataSink20 *m_pIDataSink20;
DWORD m_dwCookieDataSink20;
CKAdviseSink *m_pIAdviseSink;
DWORD m_dwCookieRead;
DWORD m_dwCookieWrite;
// parent server
CHotOpcServer *m_pServer;
// list management
CHotOpcGroup *m_pPrev;
CHotOpcGroup *m_pNext;
// item management
CHotOpcItem *m_pItemHead;
DWORD m_cdwItems;
public:
virtual void Serialize(CArchive& ar);
};
// **************************************************************************
// CHotOpcItem 命令目标
/*---------------------------------------------
CHotOpcItem类
desc:...
----------------------------------------------*/
class CHotOpcItem : public CObject
{
public:
// construction/destruction
CHotOpcItem (CHotOpcGroup *pParent);
~CHotOpcItem ();
public:
// property accessor/manipulators
void SetAccessPath (LPCTSTR strAccessPath) {m_strAccessPath = strAccessPath;}
LPCTSTR GetAccessPath () {return (m_strAccessPath);}
void SetActive (BOOL bActive) {m_bActive = bActive;}
BOOL IsActive () {return (m_bActive);}
void SetDataType (VARTYPE vtType) {m_vtDataType = vtType;}
VARTYPE GetDataType ()
{
if (m_vtvalue.vt != VT_EMPTY)
return (m_vtvalue.vt);
return (m_vtDataType);
}
void SetItemID (LPCTSTR strItemID) {m_strItemID = strItemID;}
LPCTSTR GetItemID () {return (m_strItemID);}
void SetServerHandle (OPCHANDLE hServer) {m_hServer = hServer;}
OPCHANDLE GetServerHandle () {return (m_hServer);}
void SetAccessRights (DWORD dwAccess) {m_dwAccessRights = dwAccess;}
DWORD GetAccessRights () {return (m_dwAccessRights);}
void SetValid (BOOL bValid)
{
m_bValid = bValid;
if (!bValid)
{
m_wQuality = OPC_QUALITY_BAD_OUT_OF_SERVICE;
m_cdwUpdates = 0;
m_bTimeStamped = FALSE;
VariantInit (&m_vtvalue);
}
}
BOOL IsValid () {return (m_bValid);}
// data
void UpdateData (VARIANT &vtVal, WORD wQuality);
void UpdateData (VARIANT &vtVal, WORD wQuality, FILETIME &ftTimeStamp);
void Getvalue (CString &strvalue);
LPCTSTR GetQuality ();
void GetTimeStamp (CString &strTimeStamp);
DWORD GetUpdateCount ();
// This can be dangerous!!
VARIANT* Getvalue () {return (&m_vtvalue);}
// cut/copy/paste
void Copy (CFixedSharedFile &sf);
void Paste (CFixedSharedFile &sf);
// parent group access
CHotOpcGroup* GetParentGroup () {return (m_pGroup);}
// list management
void SetPrev (CHotOpcItem *pPrev) {m_pPrev = pPrev;}
CHotOpcItem* GetPrev () {return (m_pPrev);}
void SetNext (CHotOpcItem *pNext) {m_pNext = pNext;}
CHotOpcItem* GetNext () {return (m_pNext);}
// GUI management
void SetWParam (WPARAM wParam) {m_wParam = wParam;}
WPARAM GetWParam () {return (m_wParam);}
private:
// properties
CString m_strAccessPath; // access path
CString m_strItemID; // fully qualified item ID
BOOL m_bActive; // active state
VARTYPE m_vtDataType; // server's canonical datatype
DWORD m_dwAccessRights; // access rights
OPCHANDLE m_hServer; // server handle for this item
typedef struct _flags
{
DWORD Reserved : 32;
} FLAGS;
FLAGS m_bfFlags;
BOOL m_bValid; // TRUE if successfully added to an OPC server
BOOL m_bTimeStamped; // TRUE if the last update included a timestamp
// data
FILETIME m_ftTimeStamp; // timestamp attached to value
WORD m_wQuality; // quality attached to value
VARIANT m_vtvalue; // current value
DWORD m_cdwUpdates;
// parent server
CHotOpcGroup *m_pGroup;
// list management
CHotOpcItem *m_pPrev;
CHotOpcItem *m_pNext;
// threading
CCriticalSection m_csDataLock;
// GUI management
WPARAM m_wParam;
public:
virtual void Serialize(CArchive& ar);
};

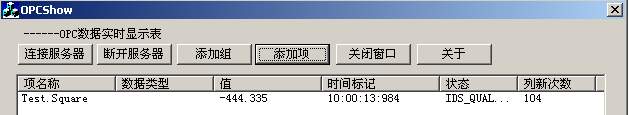

篇幅有限,不再多说了,通过连接服务器,填加组,在填加项,就可以看到OPC服务器的数据了.界面图如下:
感兴趣的朋友可以和我联系!
图片如下：
 |
